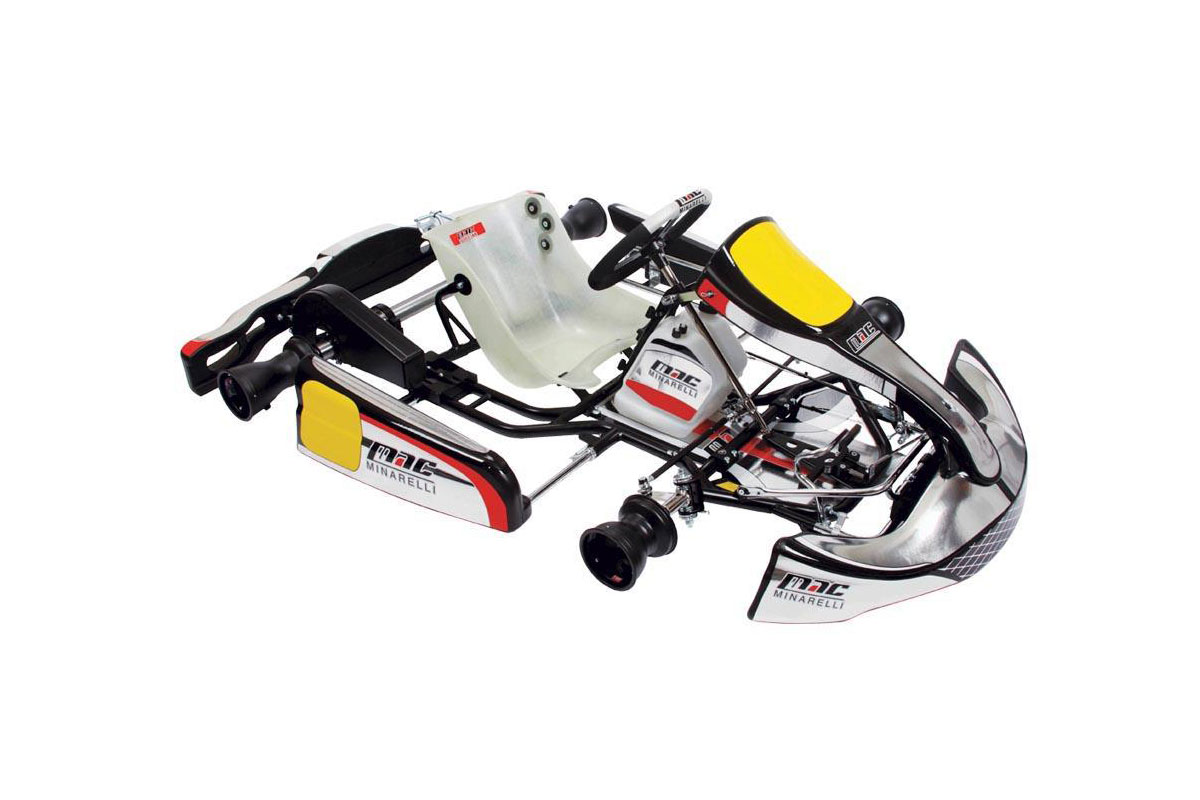

PRIME

Download

Scheda tecnica

Code MM-TEPRIME2WPSPEED-50
Frame version MM-AC0003-SB
Frame colour Dull black RAL 9005
Homologation CIK/FIA 005-CH-12
Category OK / OKJ
Pipe Chrome Molybdenum Diameter 30/32mm
Stabilizer bars Front, 1xSteel 1xPlastic
Spindles HQP Type with 10mm Bearings, 25mm wheel pin
Front adjustment Indipendent Caster and Camber with "CC-SOLVER" system
Adjustable height through thickness
Sliding front hub HQM type 25X75mm
Rear adjustment Adjustable height through 3 positions
Ø50X1040mm axle Th.2mm, BC type, FIA
Wheel hub MAG type 50X95mm
Wheels DWT type 130/210mm, magnesium, black colour, with safety screws
Brake system RIGHETTI RIDOLFI SPEED E2 type, with quick pad clearance adjustment
Cast iron rear brake disk, self-ventilated, D.200mm Th.18mm
Homologation CIK/FIA 005-B2-69


Bodyworks RIGHETTI RIDOLFI XTR14/20 type front spoiler and front panel Dynamica type
Black colour 2020 stickers
19-20/CA/20 * 95-102/CA/14-R.20 017-BP-12 017-BF-36 CIK/FIA homologation
Seat X.SEATS X6 type Silver
Accessories Anticorodal type CNC, black anodized
MAC MINARELLI steering wheel D. 340mm
