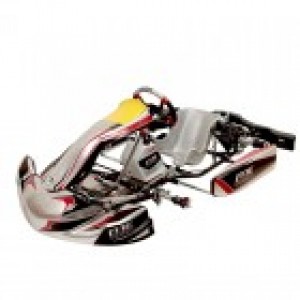

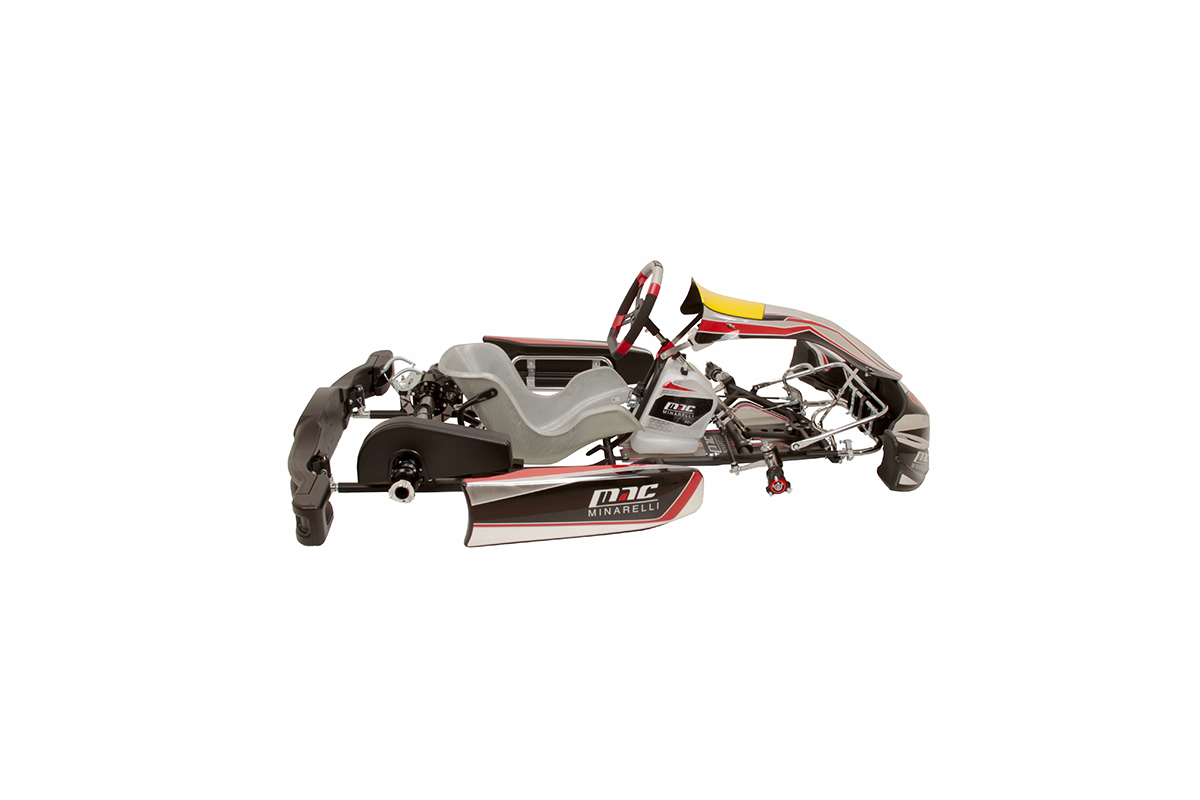

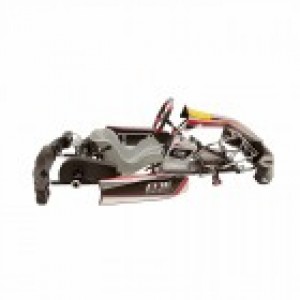

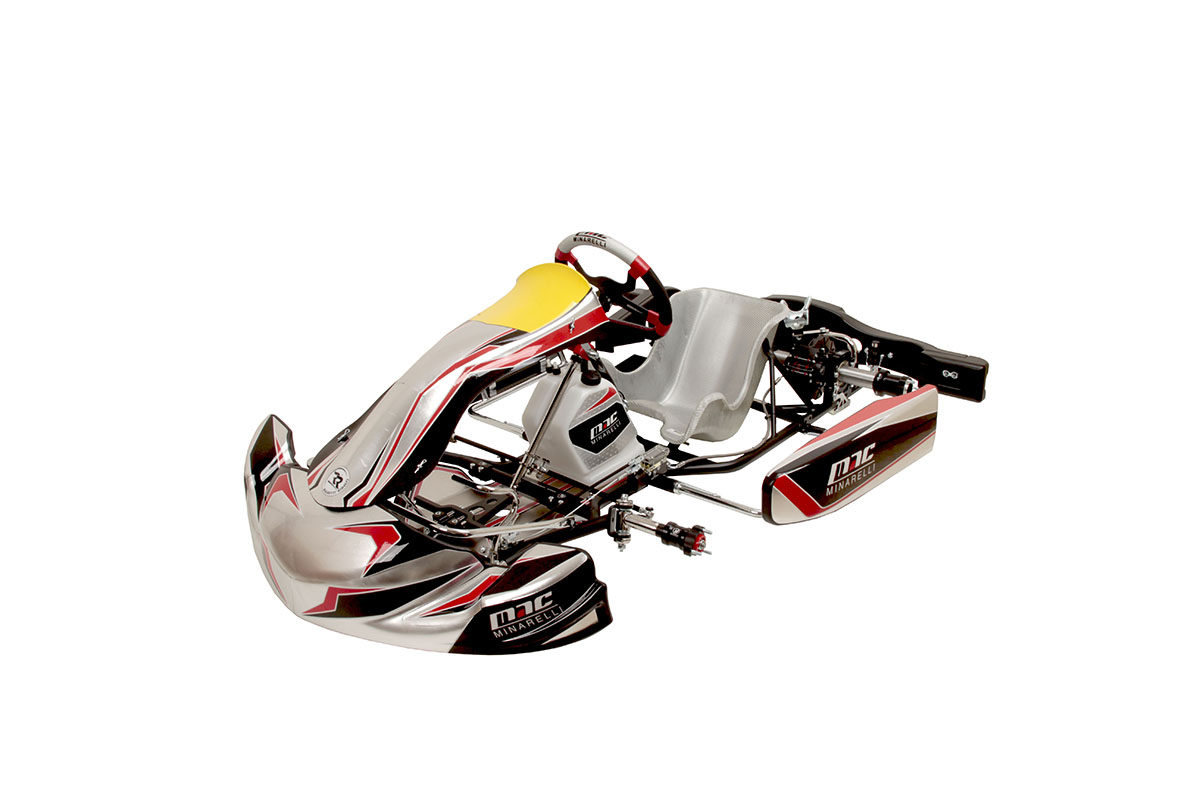

GTR30
DownloadScheda tecnica
| Code | MM-TEGTR302WPMA20A |
| Frame version | MM-AC0002-OK-M2 |
| Frame colour | Matt black RAL 9005 |
| Homologation CIK/FIA | 005-CH-49 |
| Category | OK / OKJ |
| Pipe | Chrome-molybdenum steel, 30 mm diameter |
| Stabilizer bars | Front, 1xSteel 1xPlastic |
| Spindles | HQP model with 10 mm bearing and 25 mm wheel spindle |
| Front adjustment | Independent camber and caster adjustment with the “CC-SOLVER” system Ride height adjustable using spacers HQM sliding front hubs, 25 × 75 mm |
| Rear adjustment | Three-position ride height adjustment M2-type axle, Ø50 × 1040 mm, 2 mm wall thickness MAG wheel hubs, 50 × 95 mm |
| Wheels | Option |
| Brake system | RIGHETTI RIDOLFI MA20 hydraulic braking system with automatic pad wear compensation. Floating, self-ventilated brake disc, 195 mm diameter, 18 mm thick. CIK/FIA homologation: 005-B2-02. |

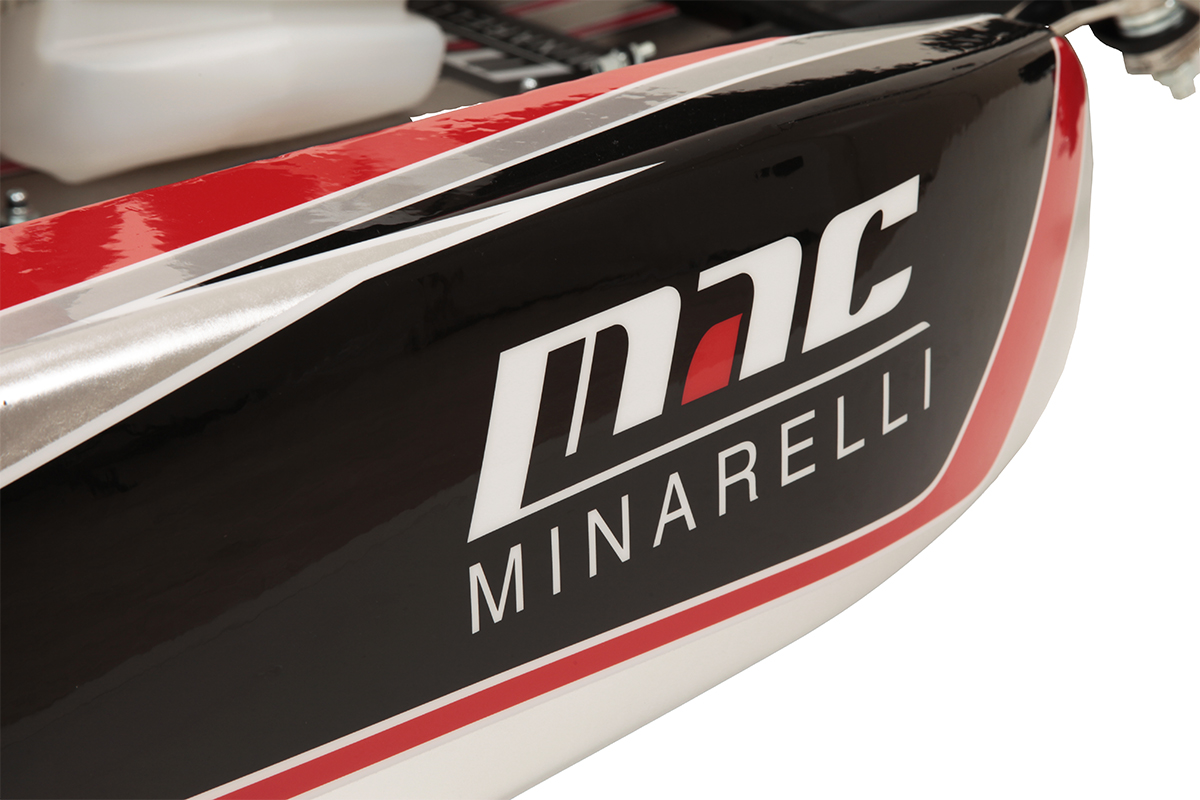

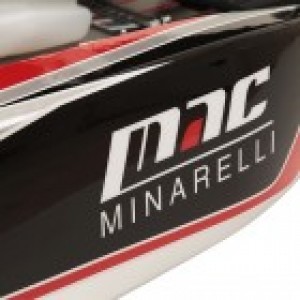

| Bodyworks | Dynamica 24 front spoiler and front fairing — CIK homologations: 017-BP-12 / 017-BF-60. XTR22 side pods — CIK homologation: 005-BS-20. XTR22 rear bumper — CIK homologation: 005-BR-30. Mac Minarelli stickers set |
| Seat | optional |
| Accessories | Machined from solid Anticorodal aluminium alloy, black anodised 340mm diameter steering wheel with MAC MINARELLI logo |
